Motorized Filter Wheel Modules

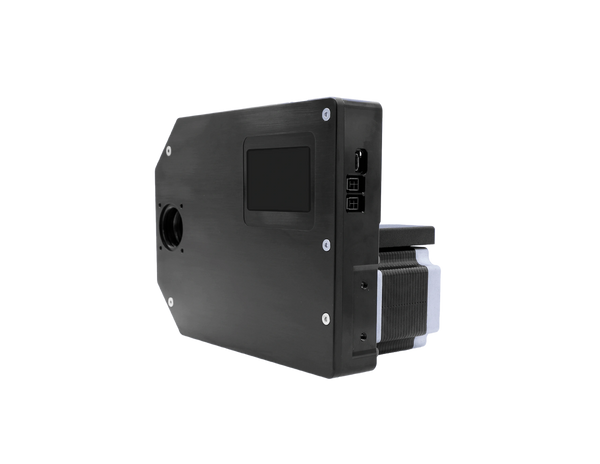

Motorized filter wheel
We offer a range of high performance motorized filter wheel modules with integrated controller for the most demanding optical imaging applications.
Featuring our innovative motion control algorithm and enhanced encoder resolution technology, motorized filter wheel modules are compact long-lasting filters changers that provide smooth and fast adjacent filter change with ultra-fast switching time between filters, making them ideal for a variety of applications, including fluorescence mircoscopy, spectroscopy,
machine vision, and more.
- Ultra-fast switching with adjacent filter switching time of 35ms (10 positions wheel) and 45ms (7 positions wheel)
- Flexible with built in controller and able to daisy-chain with other V-BMB modules
- Available in two filter sizes with filter holder for 25mm optics (10 positions) or 32mm optics (7 positions)
- Versatile to fit many applications
- Easy to use with supplied software
- Easy to use with motor controller and motor driver integrated
7-position Motorized Filter Wheel
VFW1007
- No. of Filter Holder Positions: 7
- Switching Time (Adjacent Filter): 45ms
- Motor Type: Stepper (2 phase, hybrid)
- Range: 360°
- Controller: Built In, Daisy-Chain with other V-BMB products
- Accuracy (Unidirectional): 0.2°
- Repeatability: <0.04°
- Backlash: <0.19°
- Speed Resolution: 0.0035°/sec
- Maximum Speed: 2800°/sec
- Input Voltage: 24VDC
- Input Max current: 2.0A
10-position Motorized Filter Wheel
VFW1010
- No. of Filter Holder Positions: 10
- Switching Time (Adjacent Filter): 35ms
- Motor Type: Stepper (2 phase, hybrid)
- Range: 360°
- Controller: Built In, Daisy-Chain with other V-BMB products
- Accuracy (Unidirectional): 0.2°
- Repeatability: <0.04°
- Backlash: <0.19°
- Speed Resolution: 0.0035°/sec
- Maximum Speed: 2800°/sec
- Input Voltage: 24VDC
- Input Max current: 2.0A
