ILLUMINATion Modules

VILLUMINATOR™ Top Hat Illuminator

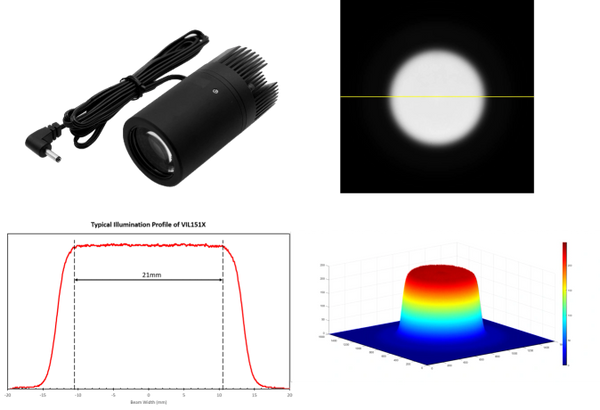

Featuring our innovative patent-pending flat-fielding technology, Villuminator™ flat top illumination modules are compact optical subassemblies that provide uniform top hat illumination onto normal or inclined planes*.

By using LEDs as incoherent light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.

* With customization. Please contact us at sales@v-bmb.com for more detailed information.

Brochure

35mm Flat Field Beam Diameter

VIL350X (High Power)

Wavelength: White
Uniformity: > 95 %
Flat Field Beam Diameter: Up to Ø35mm
Typical Optical Power: Up to 6W
Working Distance: 23mm
Max Current/Voltage: 27A / 5V
Cooling: Active Fan
Weight: 580g
Dimension: W97mm x D81mm x H106mm
Accessories: LED Driver (VLD2501)

21mm Flat Field Beam Diameter

VIL151X (Medium Power)

Wavelength: UV / Visible / Infrared / White
Uniformity: > 95 %
Flat Field Beam Diameter: Up to Ø21mm
Typical Optical Power: Up to 240mW
Working Distance: 19mm
Max Current/Voltage: 1.5A / 4V
Cooling: Passive Heatsink
Weight: 150g
Dimension: Diameter 40mm, Length 78mm
Accessories: Field Aperture Attachment (VIL-FA-1), LED Driver (VLD0201)

Buy Now At $799

Field Aperture Attachment

VIL-FA-1

Field Aperture Attachment is accessory for Villuminators™ VIL151X. Customer can purchase it to adjust the aperture at field stop position. It helps developers to simplify their optical assembly and design.

Buy Now At $240

LED Driver

VLD0201

Input voltage: 12 to 24VDC
Maximum forward voltage: 0.9 Vin
Max continuous current: 2A
LED driver type: Step-down
Output current ripple: <10mA
LED switching frequency: 1Mhz
Power supply spec: 24V 2.5A (2.1 x 5.5mm barrel jack)
For VIL151X

Buy Now At $129
