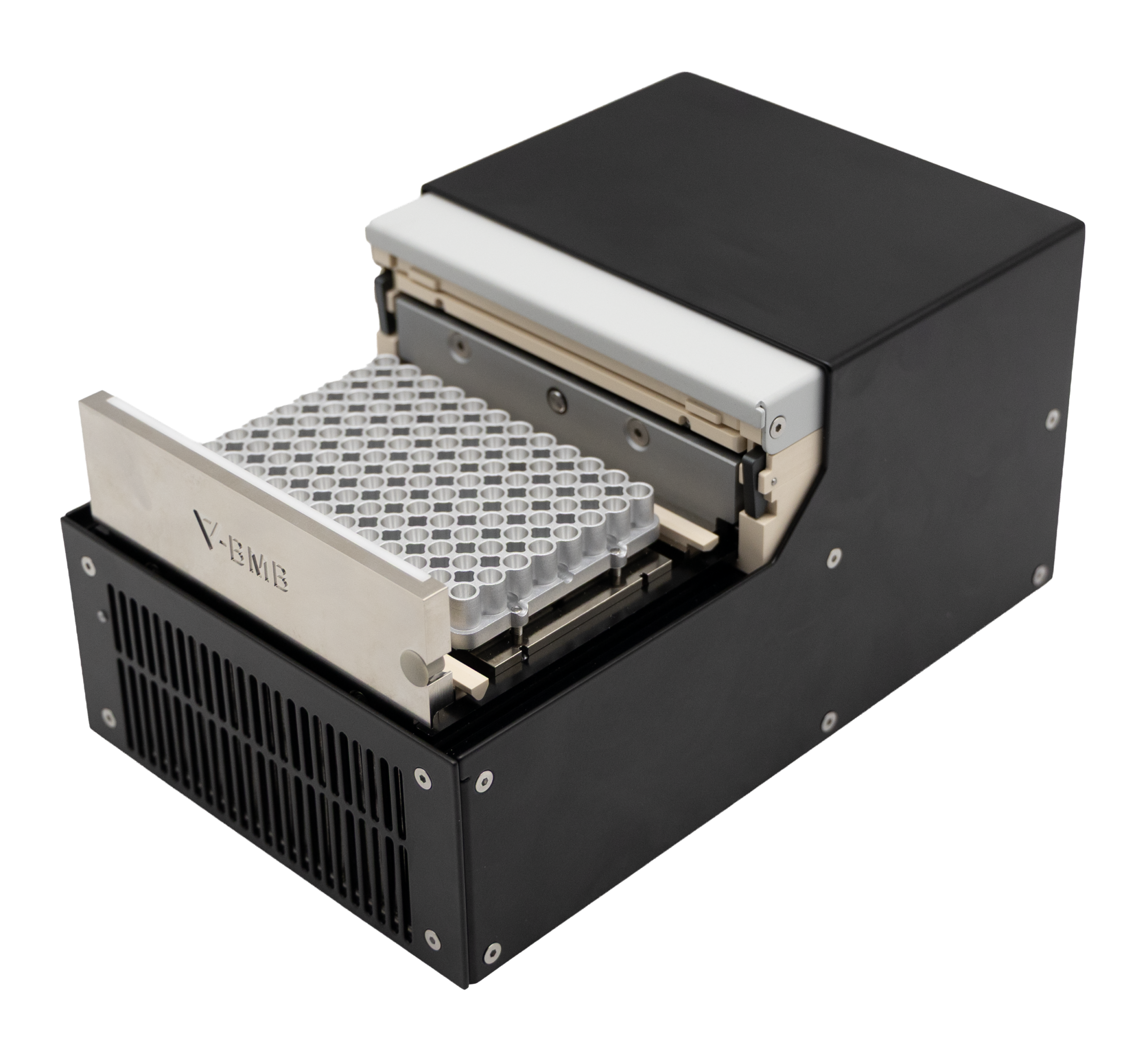

Deck-Mounted Thermal Cycler
Featuring our innovative patented thermoelectric control technology that delivers outstanding temperature stability with high power efficiency, V-BMB’s Deck-mounted Thermal Cycler provides fast, consistent heating with superior temperature uniformity across every well, ensuring reliable and reproducible results for high-throughput automated workflows. It incorporates an independent multi-channel design that actively compensates for local thermal variations to ensure uniformity across the PCR plate.
Features
- Temperature Range: 4 °C to 99 °C (39 °F to 210 °F)
- Temperature Accuracy: ±0.3 K @ 55 °C (131 °F)
- Temperature Uniformity:
- ±0.2 K @ 55 °C (131 °F)
- ±0.2 K @ 72 °C (162 °F
- ±0.3 K @ 95 °C (203 °F)
- Heating Rate Average (Slope): Max. 4.4 K/s
- Cooling Rate Average (Slope): Max. 2.2 K/s
- Adjustable heating & Cooling Rate: From 0.1 K/sec to 4.4 K/sec
- Lid Temperature: Adjustable from ambient to 115 °C (239 °F)
- Lid Default Temperature: 110 °C (230 °F)
- Plate Ejection: Automated plate ejection mechanism with exchangeable ejection bars
- Ventilation Configurations: Rear (default), down, left, right
- DC Input: 36 – 48 VDC/ 1200 W (max)
- PCR Plates: Low-profile and high-profile 96-well PCR plates
- Max. Volume During PCR: 100 μl/well for 96 well version
- Operating Temperature Range: 15 °C to 32 °C (59 °F to 90 °F)
- Operating Humidity (Tolerable RH): 30 – 80%
- Communication Interface: USB / RS-485 / RS-232
- Dimensions & Weight: 157.2 mm x 251 mm x 125 mm, 7.4 kg
-

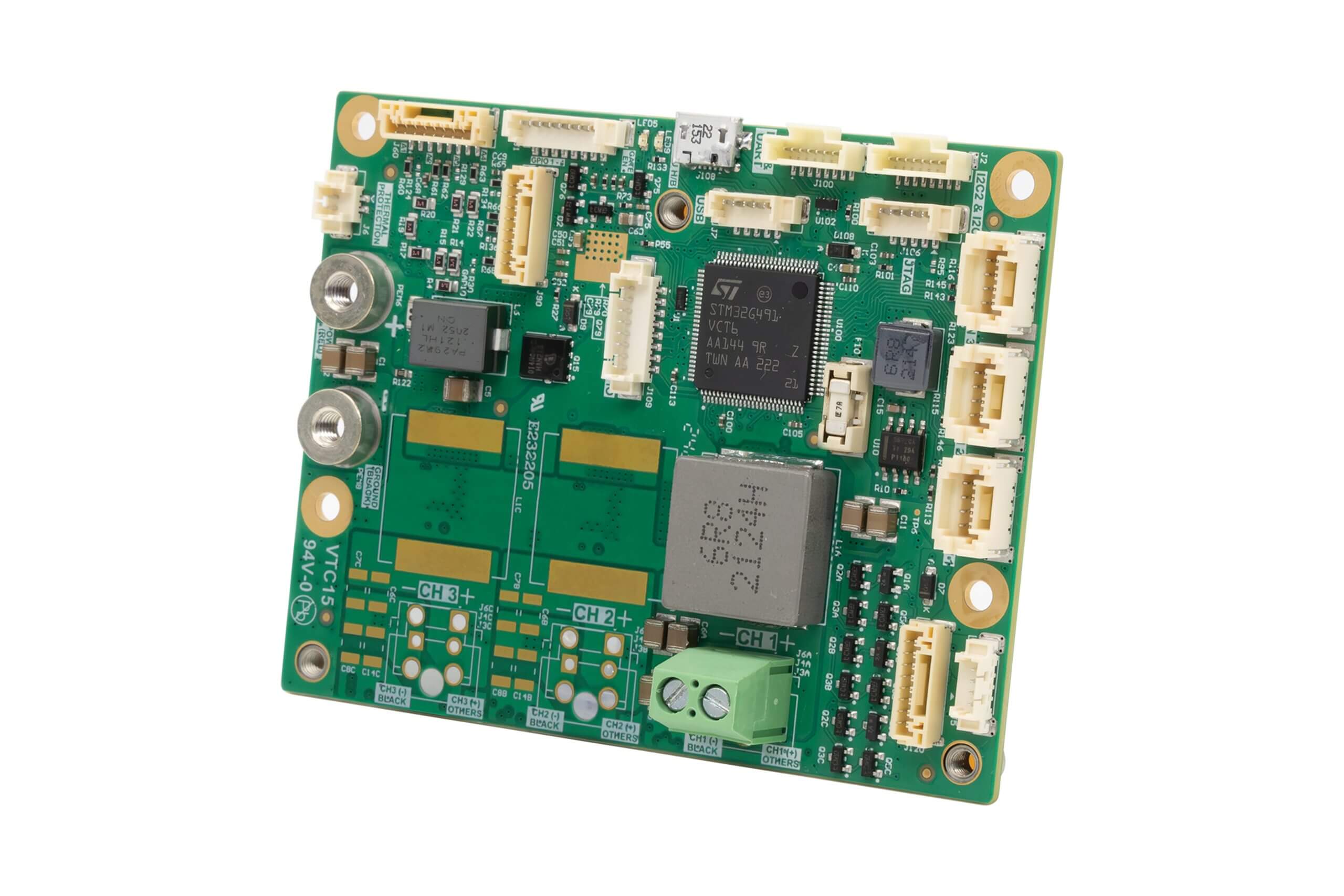

1-Channel TEC Controller, Connector Type A

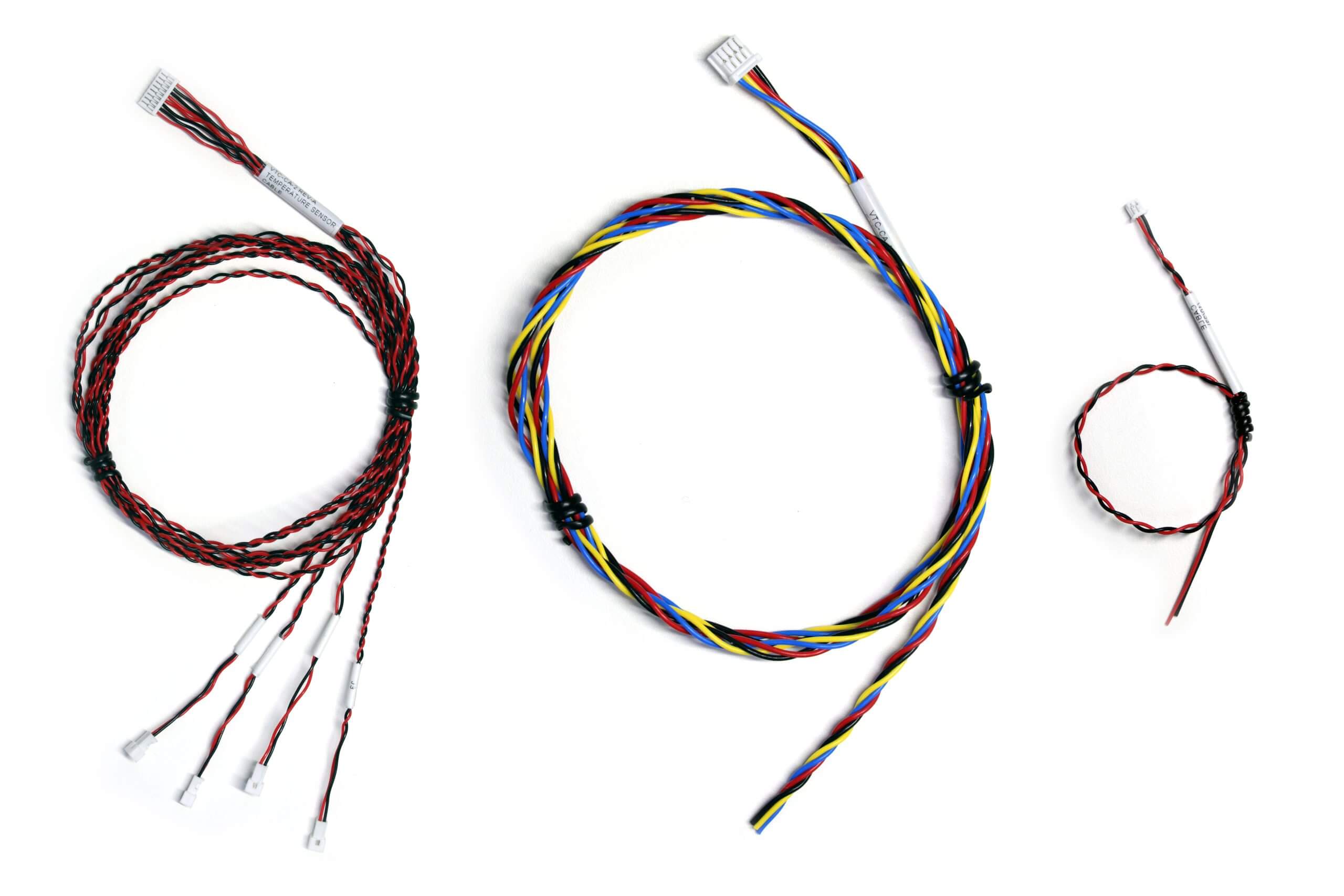

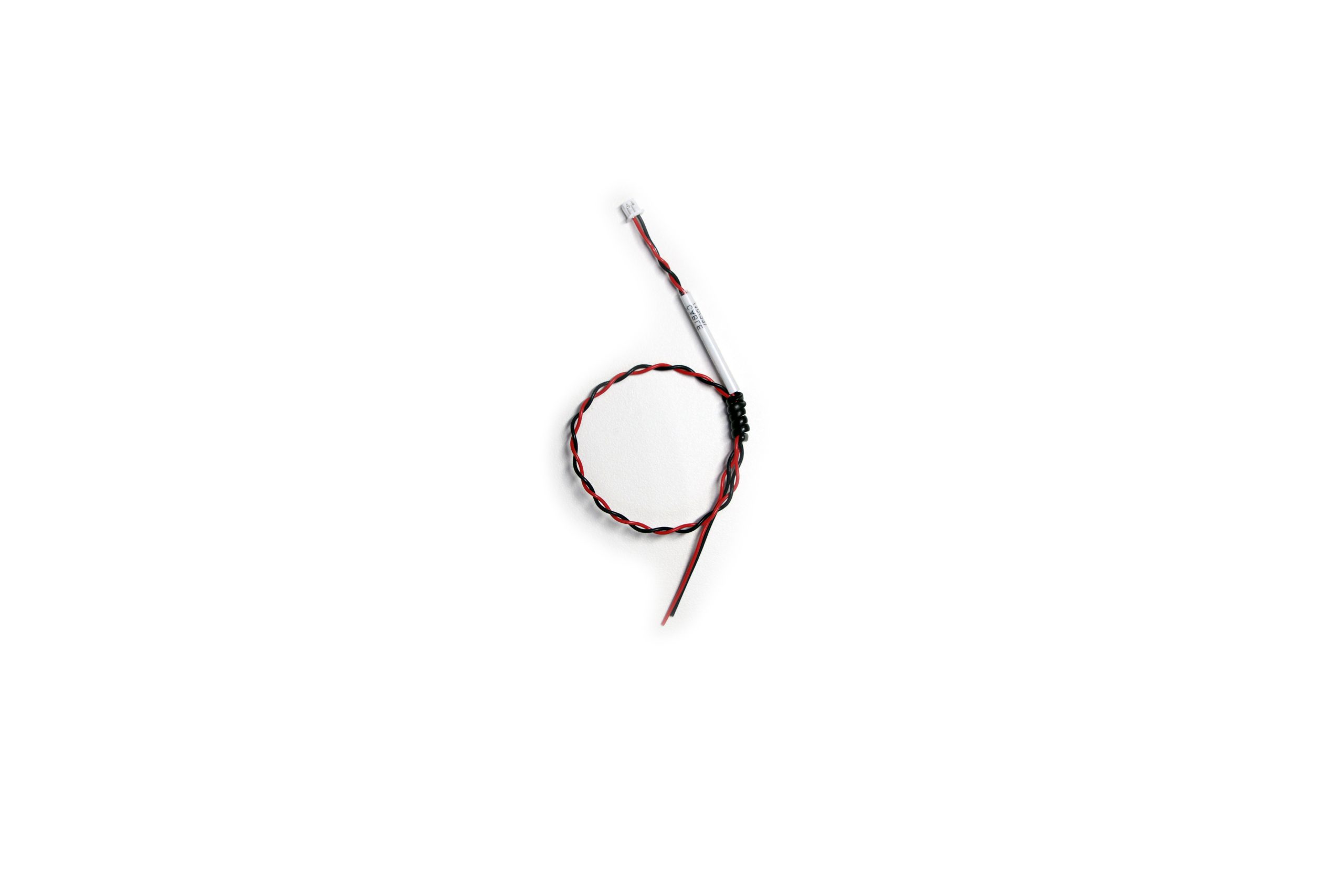

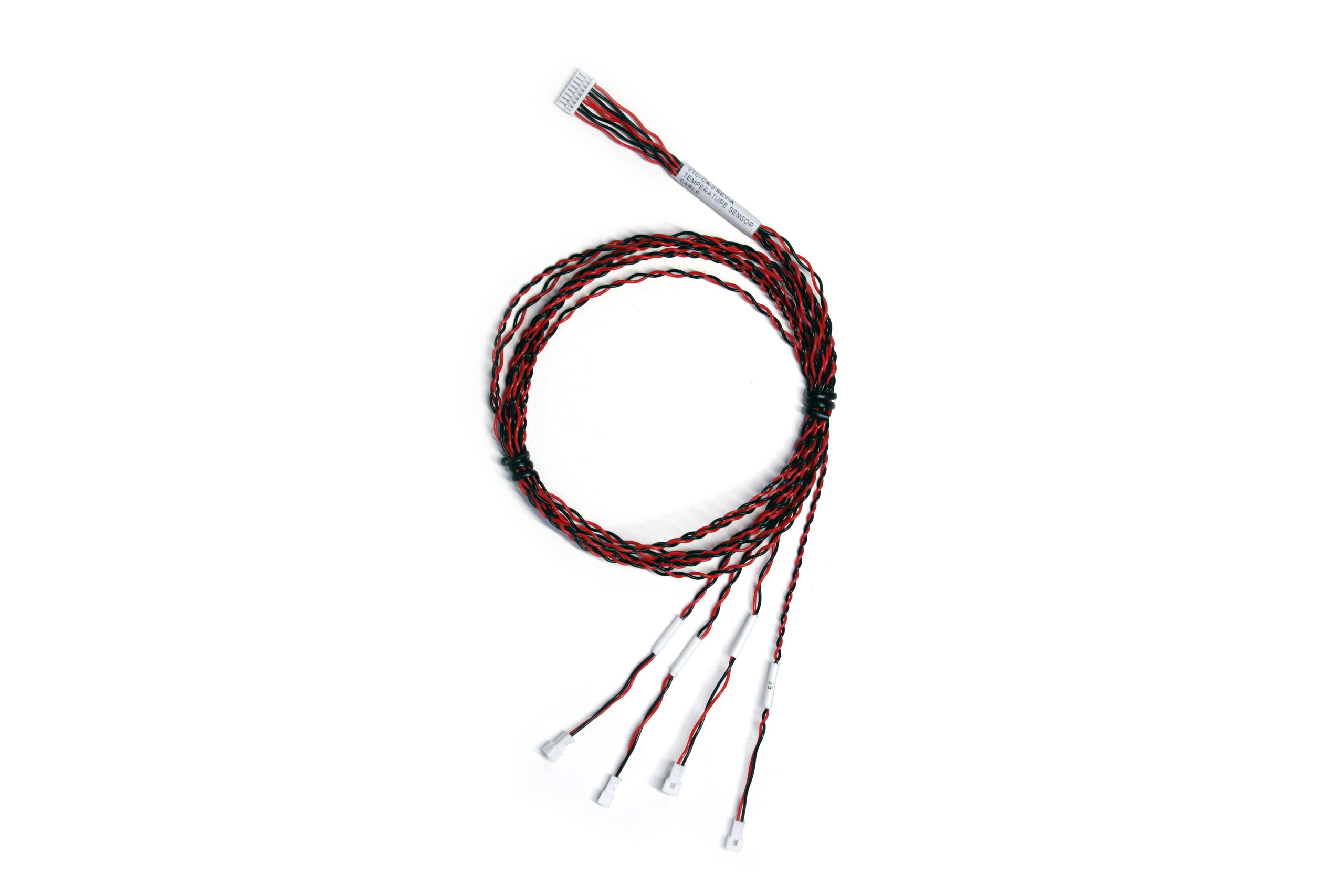

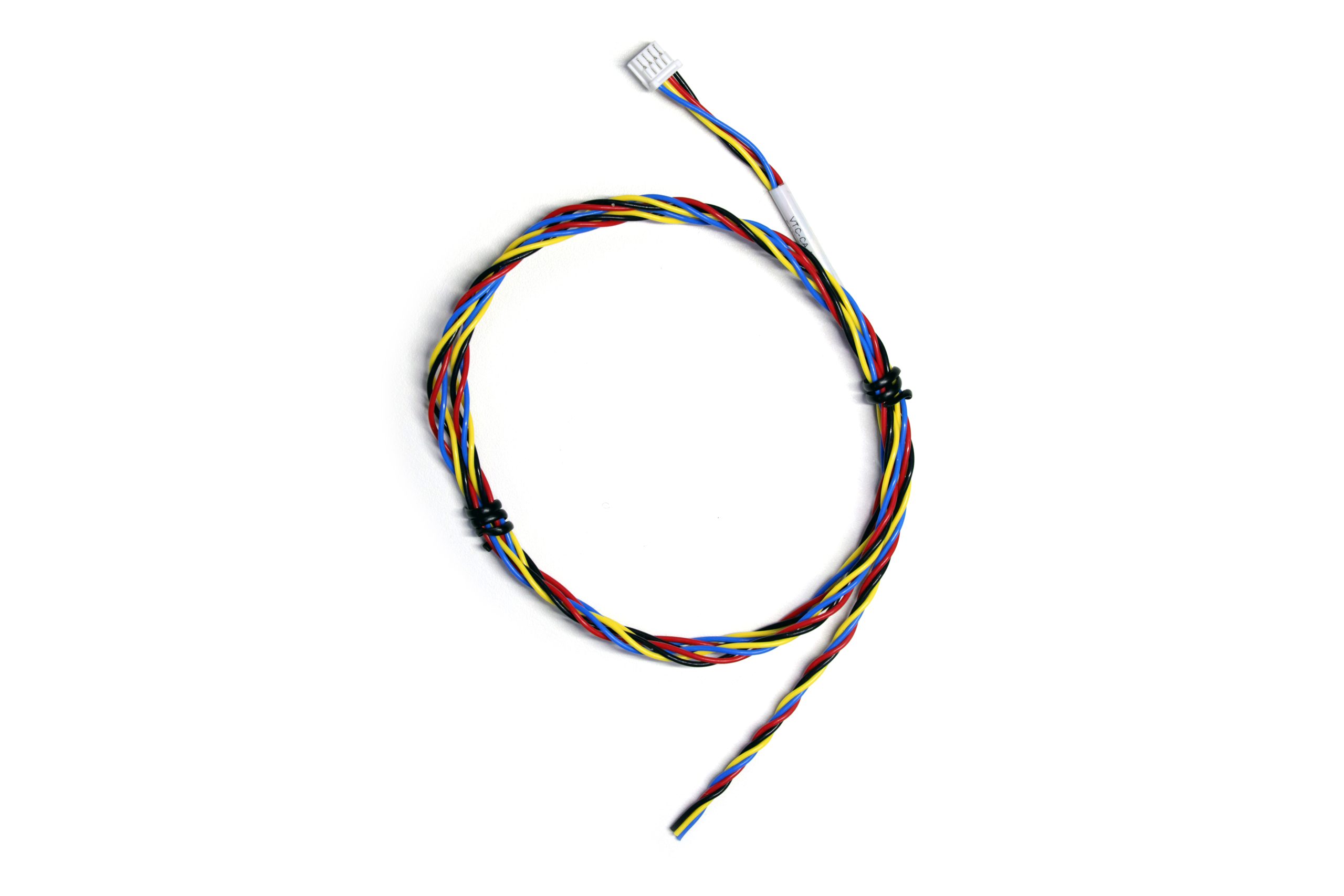

Featuring our innovative patent pending technology, 1-Channel TEC controller offer outstanding precision and stability to meet even the most demanding cooling/heating applications. It delivers the highest power efficiency. It is also highly configurable and flexible using supplied software. Our Starter Kit (VTC-SK-1), available in the e-shop, includes temperature sensor cables and fan cables for a complete TEC controller setup.
Features
- Input Voltage Vin : 12 – 36VDC
- Max input current : 20A
- Output Voltage Vmax : ±Vin
- Output Current Imax : ±16A per channel
- Typical Cooling Power Per Channel : 288W
- Power Control Scheme : Configurable input current limit
- Temperature Stability : ±0.002ºC (1 hour duration @ 25ºC ambient temperature)
- Power Efficiency : 95% @ 50% load, 98% @ 100% load
- Analog Temperature Input : 8x pt100, pt1000, NTC, TMP61, TMP63, TMP64
- Digital Input : 3X I2C BUS (Digital temperature sensor TMP117, TMP1075 etc..)
- Fan Control : 3x for speed control & detection
- GPIO (configurable for input /output) : 6x
- PID Control : Auto-tune, Manual-tune
- Interface : USB/RS485/TTL UART
- Dimensions : 90mm x 70mm x 15mm
UNIT PRICEUSD $349.00SKU: VTC1501-AAvailability: In-stock -

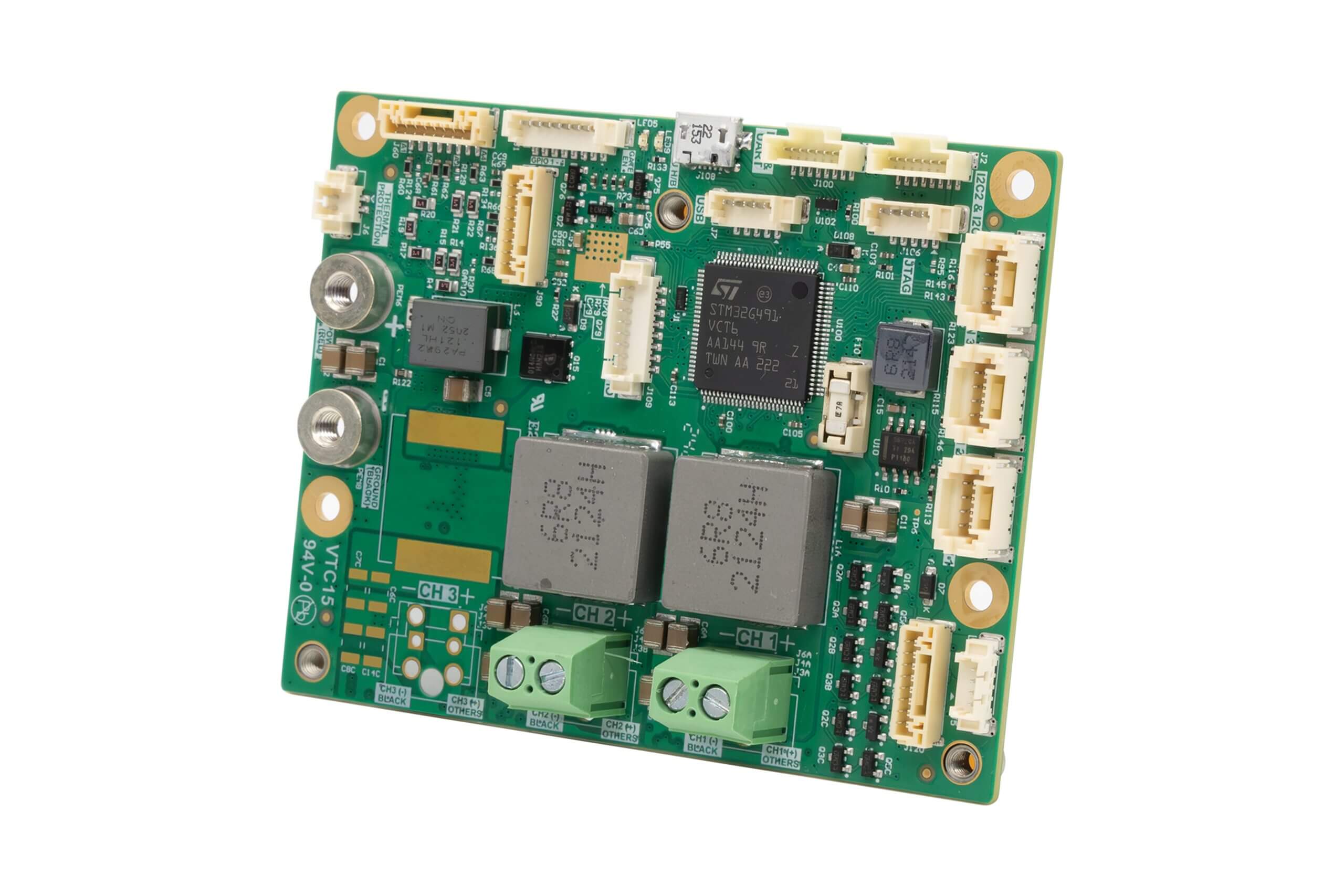

2-Channel TEC Controller, Connector Type A
Featuring our innovative patent pending technology, 2-Channel TEC controller offers outstanding precision and stability to meet even the most demanding cooling/heating applications. It delivers the highest power efficiency. It is also highly configurable and flexible using supplied software. Our Starter Kit (VTC-SK-1), available in the e-shop, includes temperature sensor cables and fan cables for a complete TEC controller setup.
Features
- Input Voltage Vin : 12 – 36VDC
- Max input current : 30A
- Output Voltage Vmax : ±Vin
- Output Current Imax : ±16A per channel
- Typical Cooling Power Per Channel : 288W
- Power Control Scheme : Configurable input current limit, dynamic power allocation
- Temperature Stability : ±0.002ºC (1 hour duration @ 25ºC ambient temperature)
- Power Efficiency : 95% @ 50% load, 98% @ 100% load
- Analog Temperature Input : 8x pt100, pt1000, NTC, TMP61, TMP63, TMP64
- Digital Input : 3X I2C BUS (Digital temperature sensor TMP117, TMP1075 etc..)
- Fan Control : 3x for speed control & detection
- GPIO (configurable for input /output) : 6x
- PID Control : Auto-tune, Manual-tune
- Interface : USB/RS485/TTL UART
- Dimensions : 90mm x 70mm x 15mm
UNIT PRICEUSD $599.00SKU: VTC1502-AAvailability: In-stock -

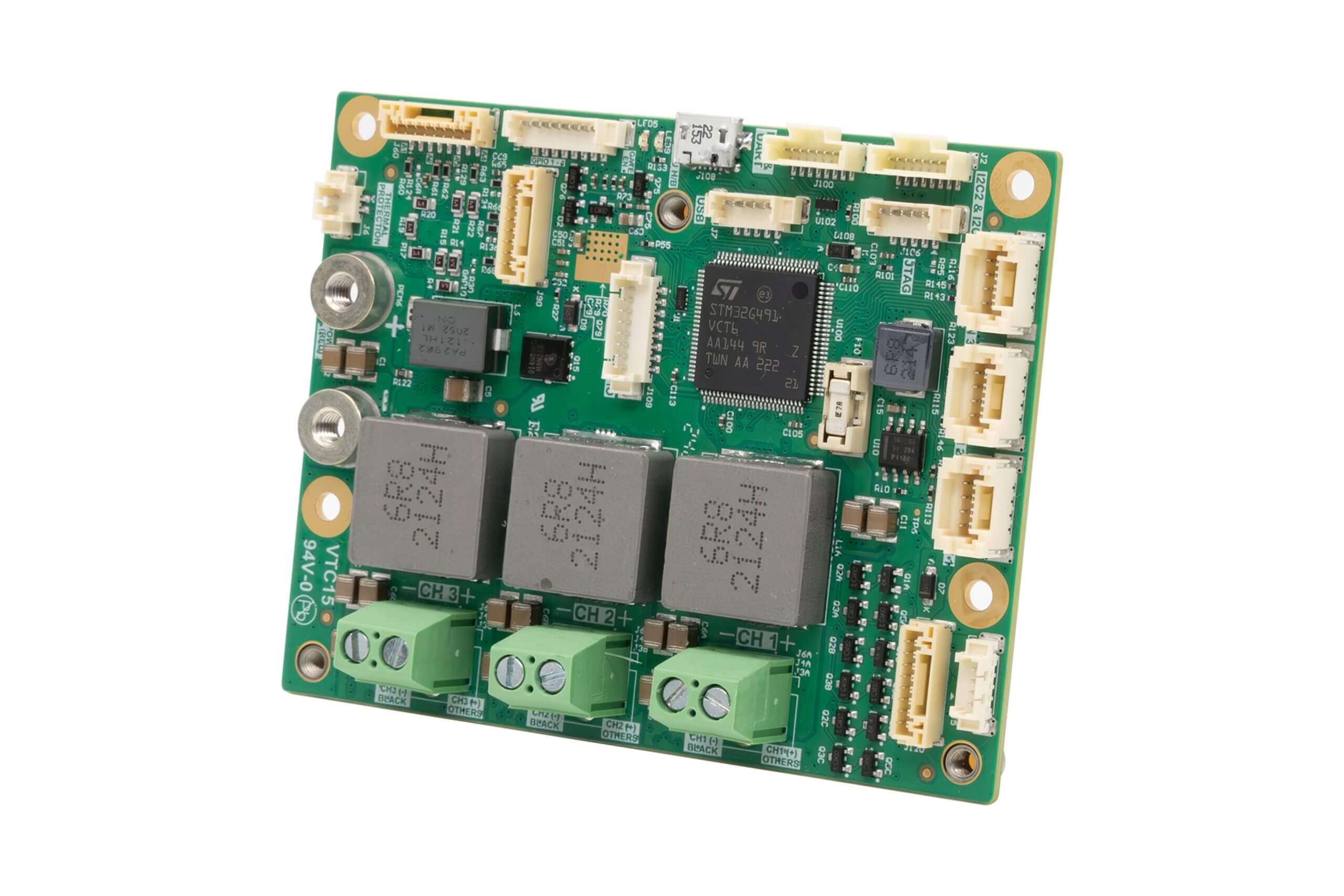

3-Channel TEC Controller, Connector Type A
Featuring our innovative patent pending technology, 3-Channel TEC controller offers outstanding precision and stability to meet even the most demanding cooling/heating applications. It delivers the highest power efficiency. It is also highly configurable and flexible using supplied software. Our Starter Kit (VTC-SK-1), available in the e-shop, includes temperature sensor cables and fan cables for a complete TEC controller setup.
Features
- Input Voltage Vin : 12 – 36VDC
- Max input current : 30A
- Output Voltage Vmax : ±Vin
- Output Current Imax : ±16A per channel
- Typical Cooling Power Per Channel : 288W
- Power Control Scheme : Configurable input current limit, dynamic power allocation
- Temperature Stability : ±0.002ºC (1 hour duration @ 25ºC ambient temperature)
- Power Efficiency : 95% @ 50% load, 98% @ 100% load
- Analog Temperature Input : 8x pt100, pt1000, NTC, TMP61, TMP63, TMP64
- Digital Input : 3X I2C BUS (Digital temperature sensor TMP117, TMP1075 etc..)
- Fan Control : 3x for speed control & detection
- GPIO (configurable for input /output) : 6x
- PID Control : Auto-tune, Manual-tune
- Interface : USB/RS485/TTL UART
- Dimensions : 90mm x 70mm x 15mm
UNIT PRICEUSD $799.00SKU: VTC1503-AAvailability: In-stock -

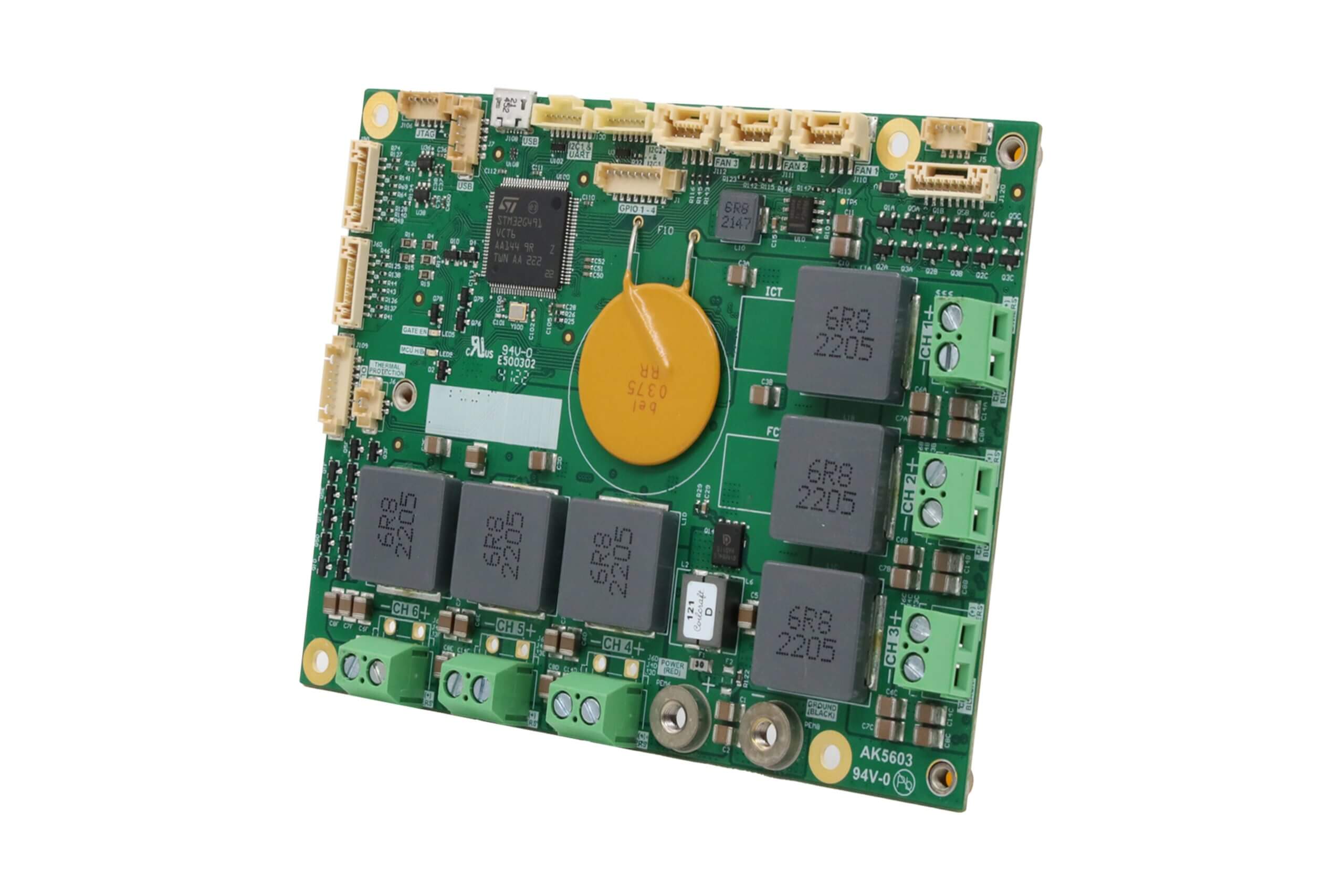

6-Channel TEC Controller, Connector Type A
Featuring our innovative patent pending technology, 6-Channel TEC controller offers outstanding precision and stability to meet even the most demanding cooling/heating applications. It delivers the highest power efficiency. It is also highly configurable and flexible using supplied software. Our Starter Kit (VTC-SK-1), available in the e-shop, includes temperature sensor cables and fan cables for a complete TEC controller setup.
Features
- Input Voltage Vin : 12 – 36VDC
- Max input current : 60A
- Output Voltage Vmax : ±Vin
- Output Current Imax : ±16A per channel
- Typical Cooling Power Per Channel : 288W
- Power Control Scheme : Configurable input current limit, dynamic power allocation
- Temperature Stability : ±0.002ºC (1 hour duration @ 25ºC ambient temperature)
- Power Efficiency : 95% @ 50% load, 98% @ 100% load
- Analog Temperature Input : 8x pt100, pt1000, NTC, TMP61, TMP63, TMP64
- Digital Input : 3X I2C BUS (Digital temperature sensor TMP117, TMP1075 etc..)
- Fan Control : 3x for speed control & detection
- GPIO (configurable for input /output) : 6x
- PID Control : Auto-tune, Manual-tune
- Interface : USB/RS485/TTL UART
- Dimensions : 120mm x 90mm x 15mm
UNIT PRICEUSD $1,199.00SKU: VTC2016-AAvailability: In-stock -

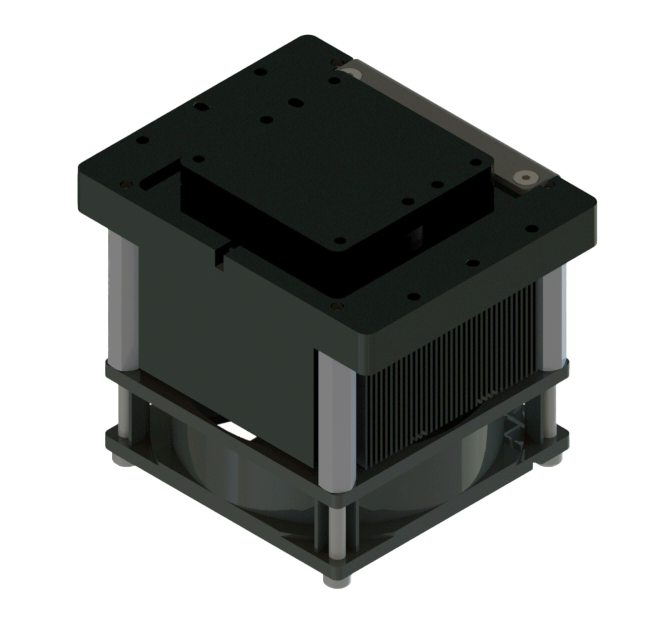

1-Channel TEC Assembly
VTM150-SC is suitable for both thermal cycling and isothermal applications. This thermoelectric module delivers high thermal stability, performance and reliability. It is built based on a deep know-how assembly process using quality components and materials to ensure consistency and long-lasting performance. Build to order, Lead time: 8 weeks (indicative)
Features
- Temperature Range: 4 – 100ºC
- Temperature Accuracy: ±0.15ºC
- Temperature Uniform (max-min): 0.3ºC
- Maximum Heating Rate: 4ºC/sec
- Maximum Cooling Rate: 3ºC/sec
- Peltiers: 1x
- Temperature Probe Sensor: 1x PT1000 + 4x NTC
- Thermal Block Format: Flat Block
- Dimension: 100mm x 95.6mm x 88mm
-

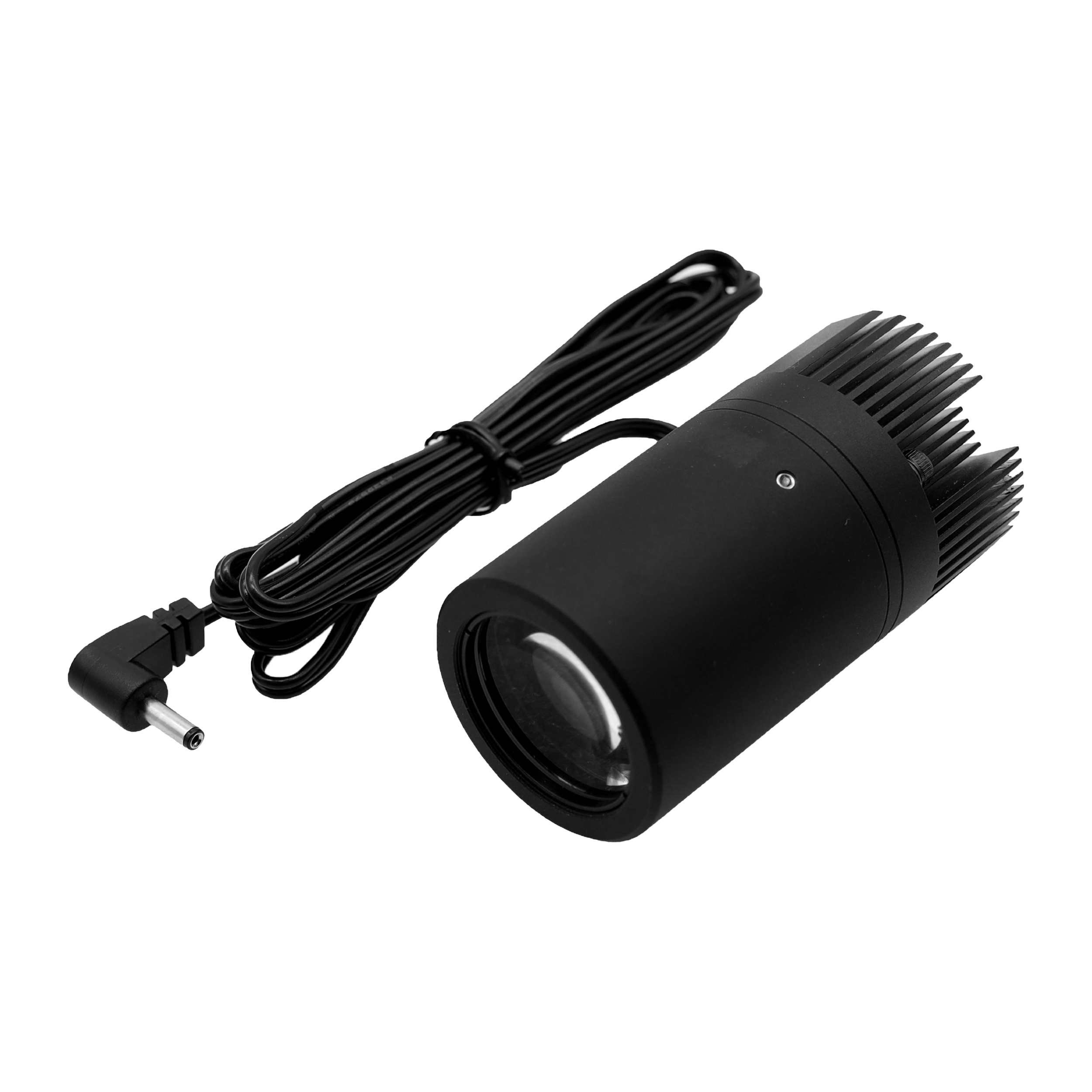

21mm Flat Field Beam Diameter Villuminator (385-Ultra Violet)
VILLUMINATOR™ flat field illumination modules are compact optical subassemblies that provide uniform “top hat” illumination onto normal plane. By using LEDs as light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.
Features
- Wavelength : 385 (Ultra Violet)
- Uniformity : > 95 %
- Flat Field Beam Diameter, mm : Up to 21 mm
- Typical Optical Power : Up to 240 mW
- Working Distance : 19 mm
- Max Current/Voltage : 1.5 A / 4 V
- Cooling : Passive Heatsink
- Weight : 150 g
- Dimension : Diameter 40 mm, Length 78 mm
- Accessories : Field Aperture Attachment, Coupler Lens Attachment, Relay Optics Attachment
- Typical Life Time : > 10,000 hours
UNIT PRICEUSD $799.00SKU: VIL151EAvailability: In-stock -
21mm Flat Field Beam Diameter Villuminator (470-Blue)
VILLUMINATOR™ flat field illumination modules are compact optical subassemblies that provide uniform “top hat” illumination onto normal plane. By using LEDs as light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.
Features
- Wavelength : 470 (Blue)
- Uniformity : > 95 %
- Flat Field Beam Diameter, mm : Up to 21 mm
- Typical Optical Power : Up to 240 mW
- Working Distance : 19 mm
- Max Current/Voltage : 1.5 A / 4 V
- Cooling : Passive Heatsink
- Weight : 150 g
- Dimension : Diameter 40 mm, Length 78 mm
- Accessories : Field Aperture Attachment, Coupler Lens Attachment, Relay Optics Attachment
- Typical Life Time : > 10,000 hours
UNIT PRICEUSD $799.00SKU: VIL151KAvailability: In-stock -
21mm Flat Field Beam Diameter Villuminator (523-Green)
VILLUMINATOR™ flat field illumination modules are compact optical subassemblies that provide uniform “top hat” illumination onto normal plane. By using LEDs as light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.
Features
- Wavelength : 567 (Lime)
- Uniformity : > 95 %
- Flat Field Beam Diameter, mm : Up to 21 mm
- Typical Optical Power : Up to 240 mW
- Working Distance : 19 mm
- Max Current/Voltage : 1.5 A / 4 V
- Cooling : Passive Heatsink
- Weight : 150 g
- Dimension : Diameter 40 mm, Length 78 mm
- Accessories : Field Aperture Attachment, Coupler Lens Attachment, Relay Optics Attachment
- Typical Life Time : > 10,000 hours
UNIT PRICEUSD $799.00SKU: VIL151NAvailability: In-stock
Check out the whitepaper on our TEC controller design!
Email us to sales@v-bmb.com
