VBMB precision thermoelectric modules are suitable for both thermal cycling and isothermal applications, and they deliver high performance and reliability. TEC Assemblies are built based on a deep know-how assembly process using quality components and materials to ensure consistency and long-lasting performance.
- Ease of use
- Designed for seamless connection to TEC Controller
- Minimizes thermal mass
- High heating and cooling rate performance
- Excellent well to well temperature uniformity
- High reliability

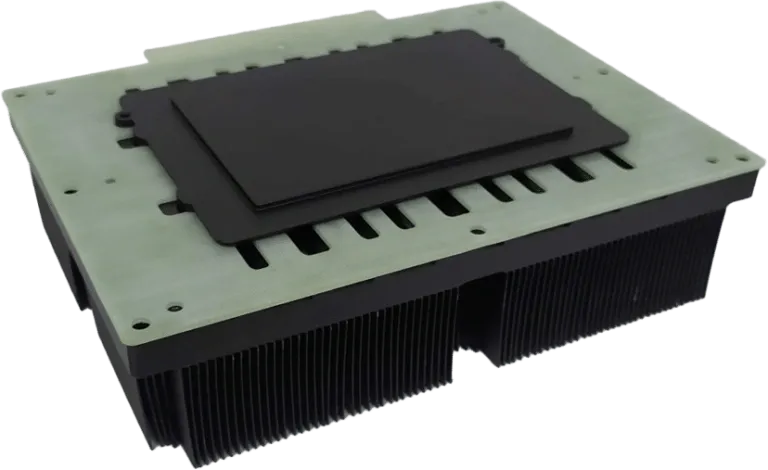

Flat-Block Thermoelectric Module
VTM100-FB
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 6x
- Temperature Probe Sensor: 6x RTD + Heatsink Temperature Sensor
- Thermal Block Format: Flat Block

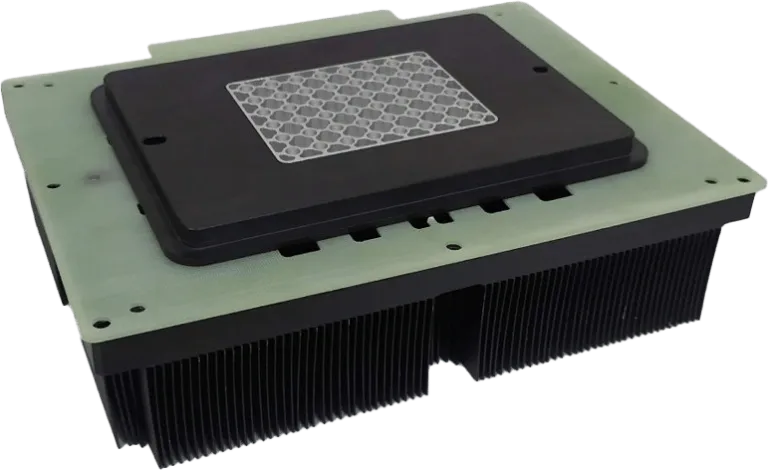

48-Well Thermoelectric Module
VTM100-48W
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 4x
- Temperature Probe Sensor: 4x RTD + Heatsink Temperature Sensor
- Thermal Block Format: 48-well
- Optional Heated Lid: 48-well

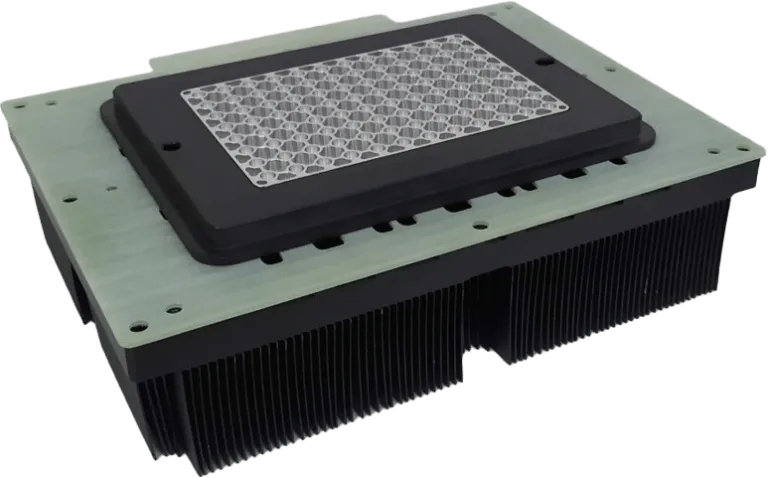

96-Well Thermoelectric Module
VTM100-96W
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 6x
- Temperature Probe Sensor: 6x RTD + Heatsink Temperature Sensor
- Thermal Block Format: 96-well
- Optional Heated Lid: 96-well

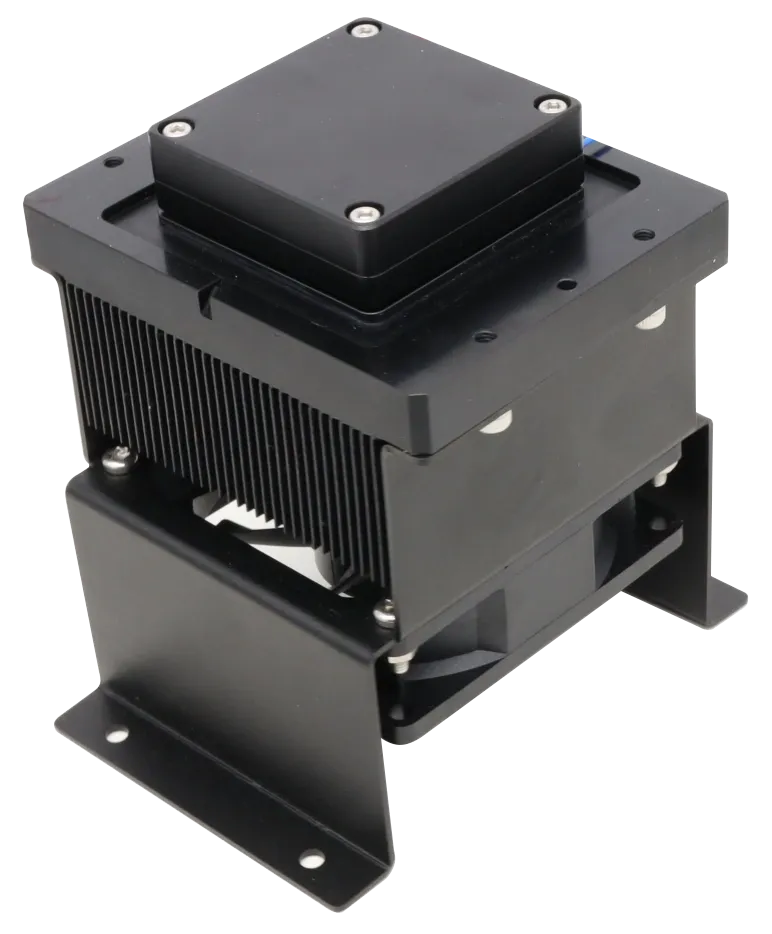

Single Channel THERMOELECTRIC Module
VTM100-SC
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 1x
- Temperature Probe Sensor: 1x PT1000 + 4x NTC (1x for ambience, 1x for heat sink, 2x embedded in thermal block plate)
- Thermal Block Format: Flat Block
- Dimension (WxDxH): 100 x 120.4 x 105.7mm
