Precision Thermoelectric Modules
TEC Assemblies
VBMB precision thermoelectric modules are suitable for both thermal cycling and isothermal applications, and they deliver high performance and reliability. TEC Assemblies are built based on a deep know-how assembly process using quality components and materials to ensure consistency and long-lasting performance.
- Ease of use
- Designed for seamless connection to TEC Controller
- Minimizes thermal mass
- High heating and cooling rate performance
- Excellent well to well temperature uniformity
- High reliability
Flat-Block Thermoelectric Module
VTM100-FB
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 6x
- Temperature Probe Sensor: 6x RTD + Heatsink Temperature Sensor
- Thermal Block Format: Flat Block

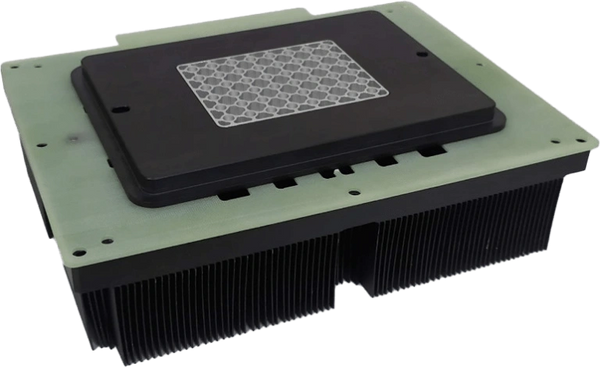

48-Well Thermoelectric Module
VTM100-48W
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 4x
- Temperature Probe Sensor: 4x RTD + Heatsink Temperature Sensor
- Thermal Block Format: 48-well
- Optional Heated Lid: 48-well
96-Well Thermoelectric Module
VTM100-96W
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 6x
- Temperature Probe Sensor: 6x RTD + Heatsink Temperature Sensor
- Thermal Block Format: 96-well
- Optional Heated Lid: 96-well
Single Channel THERMOELECTRIC Module
VTM100-SC
- Temperature Range: 4-100°C
- Temperature Accuracy: ±0.15°C
- Temperature Uniformity (max-min): 0.3°C
- Maximum Heating Rate: 4°C/sec
- Maximum Cooling Rate: 3°C/sec
- Peltiers: 1x
- Temperature Probe Sensor: 1x PT1000 + 4x NTC (1x for ambience, 1x for heat sink, 2x embedded in thermal block plate)
- Thermal Block Format: Flat Block
- Dimension (WxDxH): 100 x 120.4 x 105.7mm
