21mm Flat Field Beam Diameter Villuminator (623-Red)
VILLUMINATOR™ flat field illumination modules are compact optical subassemblies that provide uniform “top hat” illumination onto normal plane. By using LEDs as light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.
Features
- Wavelength : 623 (Red)
- Uniformity : > 95 %
- Flat Field Beam Diameter, mm : Up to 21 mm
- Typical Optical Power : Up to 240 mW
- Working Distance : 19 mm
- Max Current/Voltage : 1.5 A / 4 V
- Cooling : Passive Heatsink
- Weight : 150 g
- Dimension : Diameter 40 mm, Length 78 mm
- Accessories : Field Aperture Attachment, Coupler Lens Attachment, Relay Optics Attachment
- Typical Life Time : > 10,000 hours
UNIT PRICEUSD $799.00SKU: VIL151QAvailability: In-stock -
21mm Flat Field Beam Diameter Villuminator (NWH-Neutral White)
VILLUMINATOR™ flat field illumination modules are compact optical subassemblies that provide uniform “top hat” illumination onto normal plane. By using LEDs as light sources, Villuminators™ are long-lasting luminaires with many choices of wavelengths, which make them ideal for a variety of applications, including fluorescence imaging, machine vision, projection, display, and more.
Features
- Wavelength : NWH (Neutral White)
- Uniformity : > 95 %
- Flat Field Beam Diameter, mm : Up to 21 mm
- Typical Optical Power : Up to 240 mW
- Working Distance : 19 mm
- Max Current/Voltage : 1.5 A / 4 V
- Cooling : Passive Heatsink
- Weight : 150 g
- Dimension : Diameter 40 mm, Length 78 mm
- Accessories : Field Aperture Attachment, Coupler Lens Attachment, Relay Optics Attachment
- Typical Life Time : > 10,000 hours
UNIT PRICEUSD $799.00SKU: VIL151BAvailability: In-stock -
UNIT PRICEUSD $129.00SKU: VLD0201Availability: In-stock
-

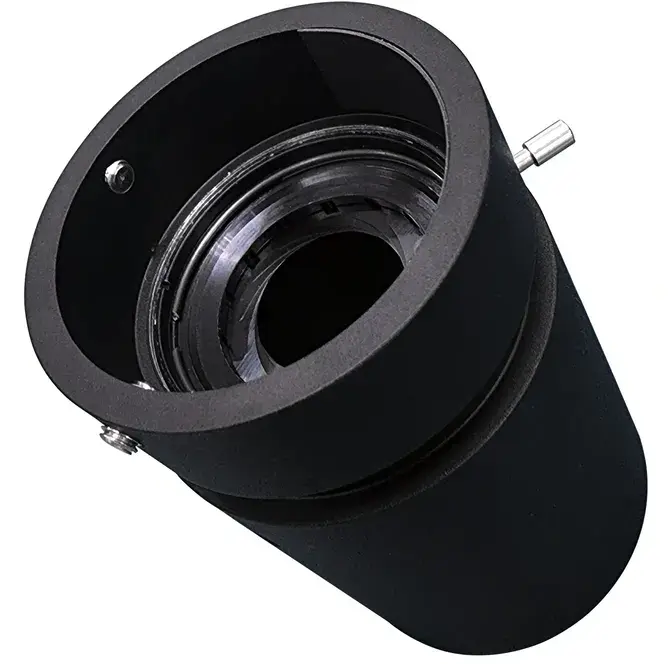

Villuminator Field Aperture Attachment
Field Aperture Attachment is accessory for Villuminators™. Customer can purchase it to adjust the aperture at field stop position. It helps developers to simplify their optical assembly and design.
UNIT PRICEUSD $240.00SKU: VIL-FA-1Availability: In-stock -

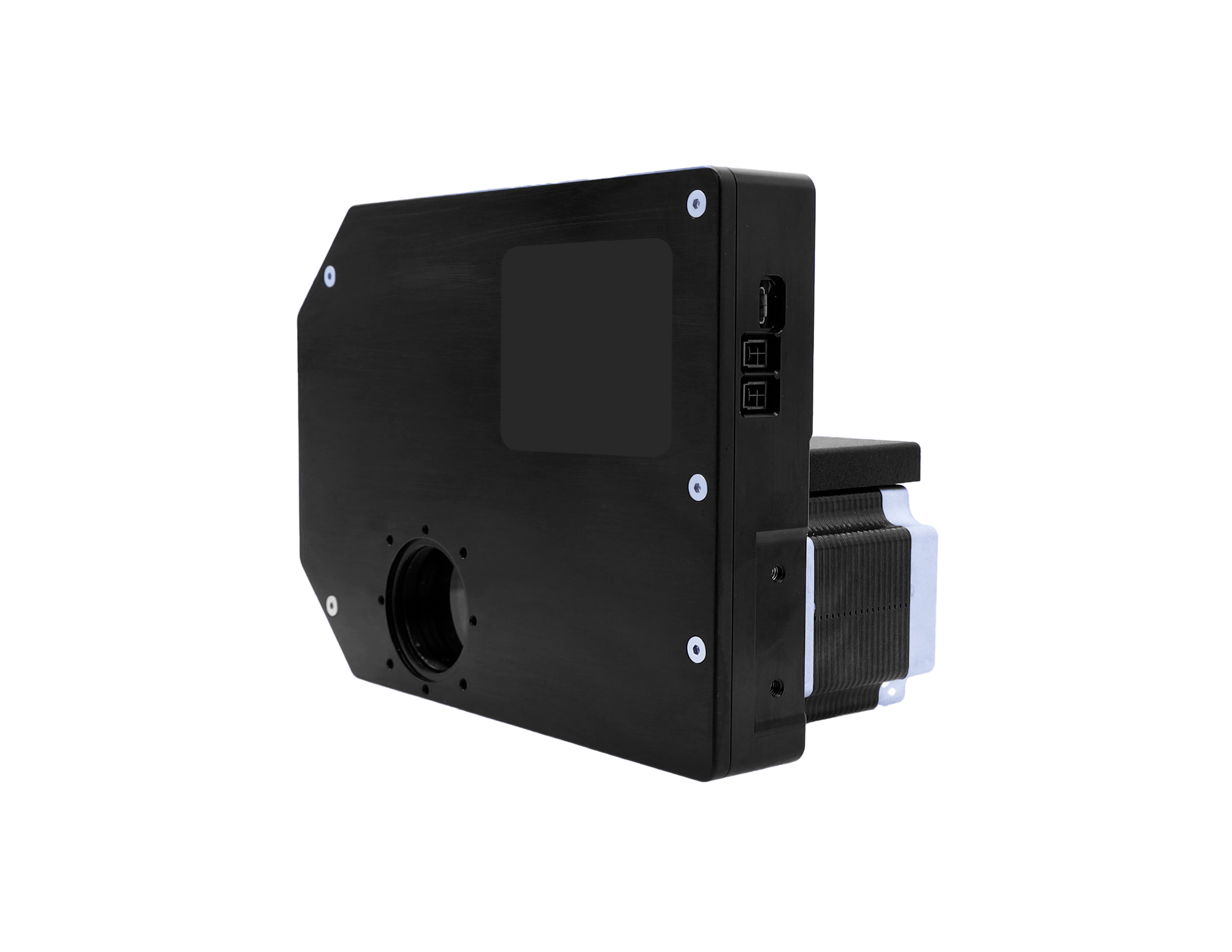

7-Position Motorized Filter Wheel
Featuring our innovative motion control algorithm and enhanced encoder resolution technology, motorized filter wheel modules are compact long-lasting filters changers that provide smooth and fast adjacent filter change with ultra-fast switching time between filters, making them ideal for a variety of applications, including fluorescence microscopy, spectroscopy, machine vision, and more. Build to order, Lead time: 8 weeks (indicative)
Features
- No. of Filter Holder Positions: 7
- Switching Time (Adjacent Filter): 45ms
- Motor Type: Stepper (2 phase, hybrid)
- Range: 360°
- Controller: Built In, Daisy-Chain with other V-BMB products
- Accuracy (Unidirectional): 0.2°
- Repeatability: <0.04°
- Backlash: <0.19°
- Speed Resolution: 0.0035°/sec
- Maximum Speed: 2800°/sec
- Input Voltage: 24VDC
- Input Max current: 2.0A
-

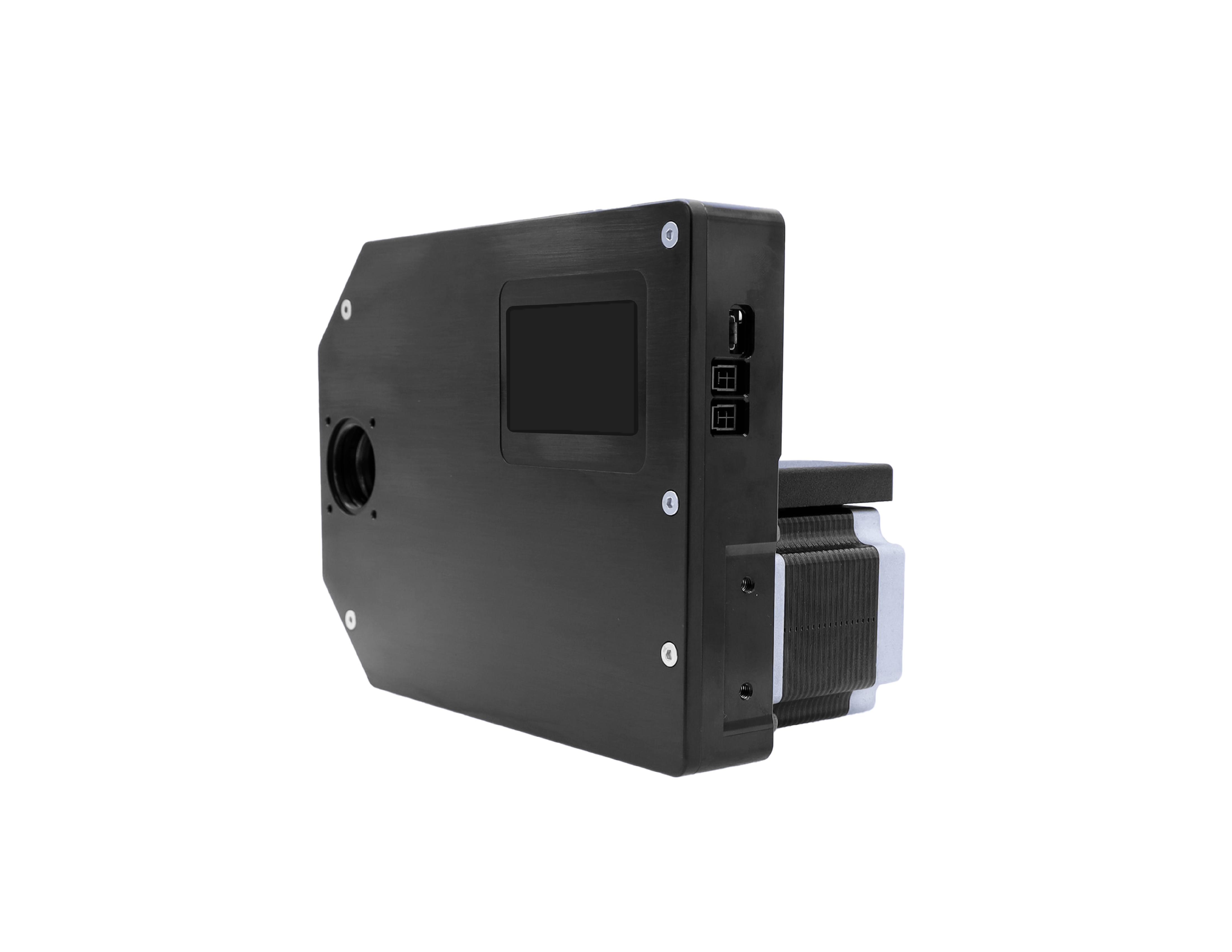

10-Position Motorized Filter Wheel
Featuring our innovative motion control algorithm and enhanced encoder resolution technology, motorized filter wheel modules are compact long-lasting filters changers that provide smooth and fast adjacent filter change with ultra-fast switching time between filters, making them ideal for a variety of applications, including fluorescence microscopy, spectroscopy, machine vision, and more. Build to order, Lead time: 8 weeks (indicative)
Features
- No. of Filter Holder Positions: 10
- Switching Time (Adjacent Filter): 35ms
- Motor Type: Stepper (2 phase, hybrid)
- Range: 360°
- Controller: Built In, Daisy-Chain with other V-BMB products
- Accuracy (Unidirectional): 0.2°
- Repeatability: <0.04°
- Backlash: <0.19°
- Speed Resolution: 0.0035°/sec
- Maximum Speed: 2800°/sec
- Input Voltage: 24VDC
- Input Max current: 2.0A
-

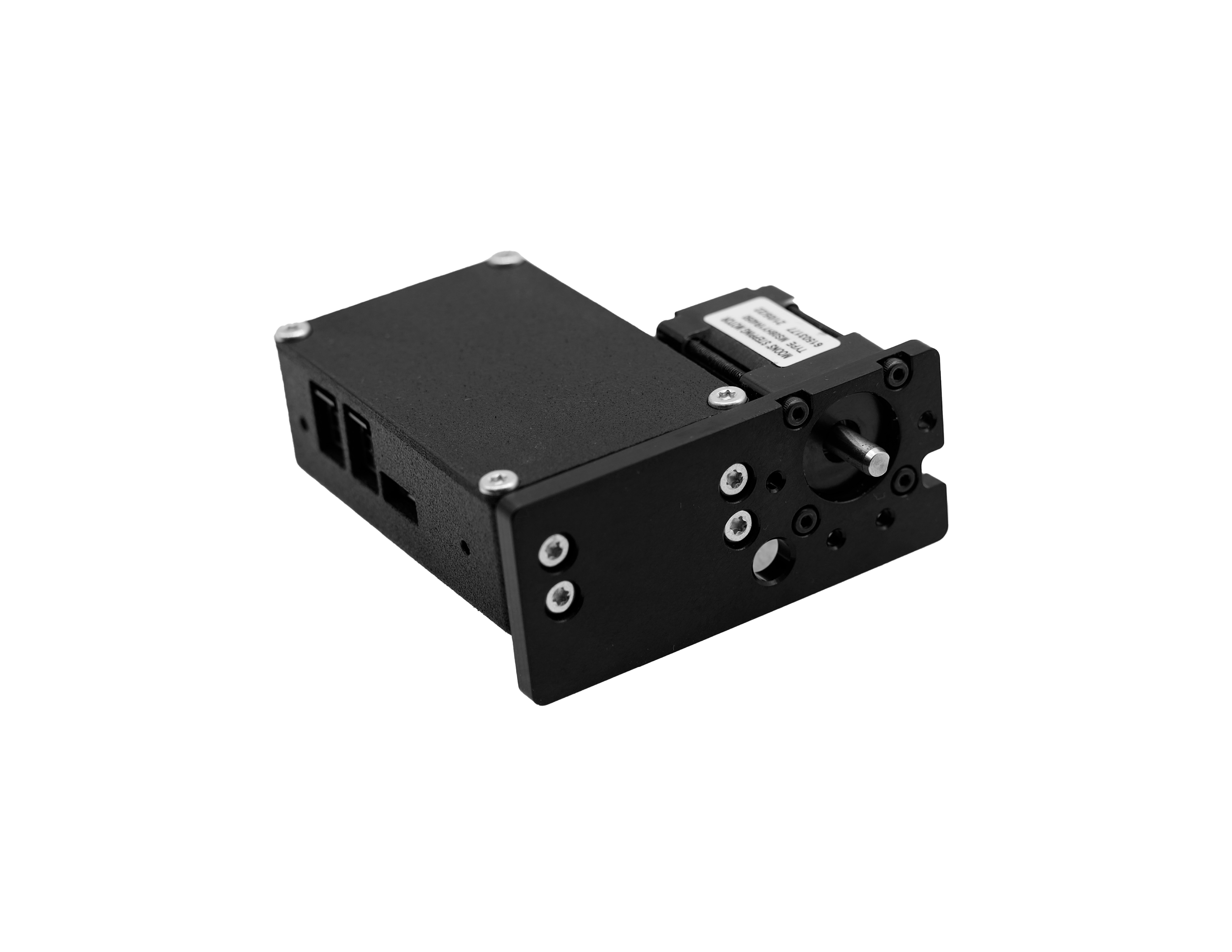

Nema-8 Motor with Built-in Controller
Featuring our innovative motion control algorithm and enhanced encoder resolution technology, our precision motion actuator modules with integrated controller are compact and easy to use for providing smooth and precise motion, making them ideal for a variety of applications with tight spaces and ultra-high precision, including micromanipulation, laser alignment, optical focusing, automated test & measurement, robotics & machine automation, and more. Build to order, Lead time: 8 weeks (indicative)
Features
- Motor Size: Nema-8
- Motor Type: Stepper (2 phase, hybrid)
- Controller: Built In, Daisy-Chain with other V-BMB products
- Resolution: 0.007°
- Accuracy (Unidirectional): 0.1°
- Repeatability: <0.02°
- Speed Resolution: 0.0035°/sec
- Minimum Speed: 0.0035°/sec
- Maximum Speed: 18000°/sec
- Input Voltage: 24-48VDC
- Input Current: Up to 3.5A RMS / 5A peak (programmable in software)
-

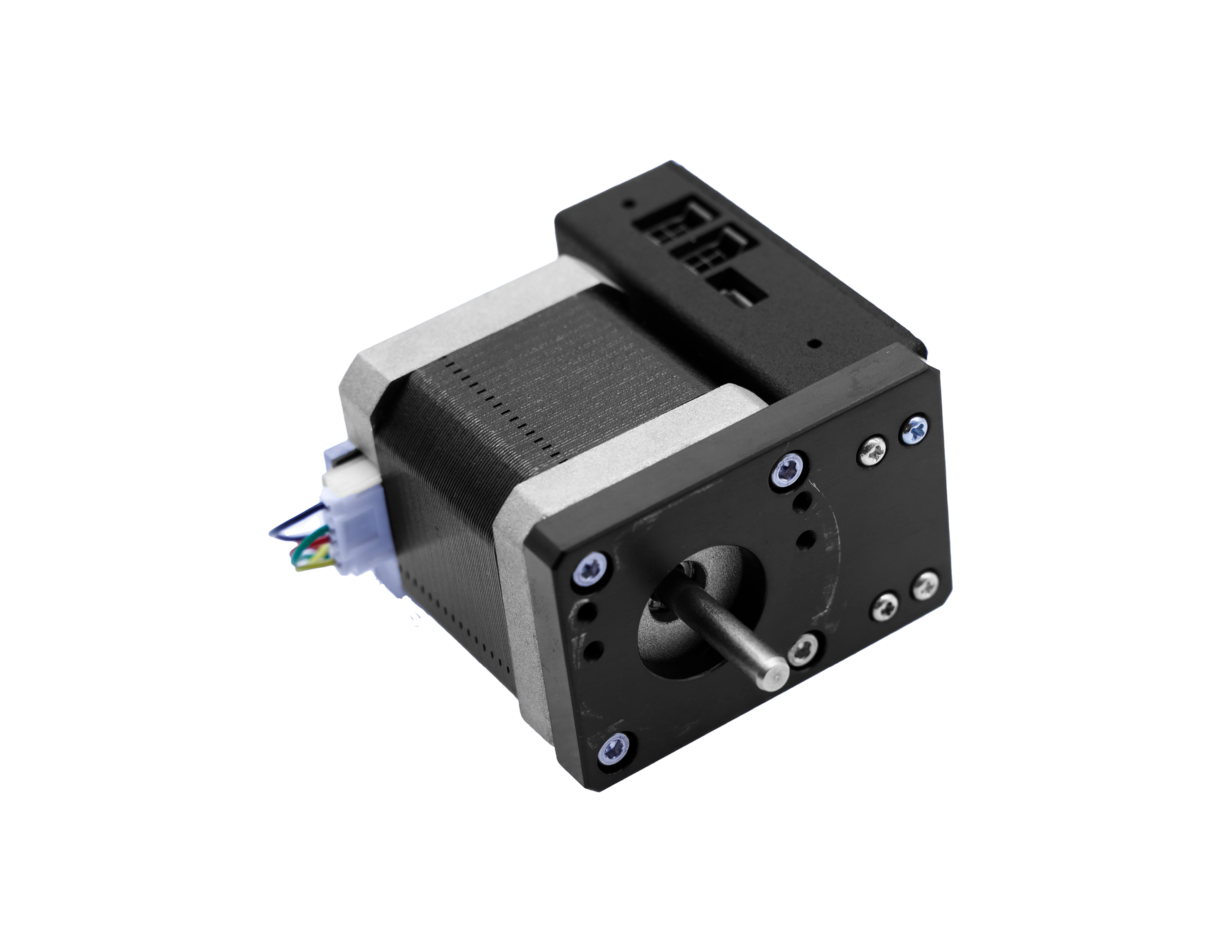

Nema-17 Motor with Built-in Controller
Featuring our innovative motion control algorithm and enhanced encoder resolution technology, our precision motion actuator modules with integrated controller are compact and easy to use for providing smooth and precise motion, making them ideal for a variety of applications with tight spaces and ultra-high precision, including mircomanipulation, laser alignment, optical focusing, automated test & measurement, robotics & machine automation, and more. Build to order, Lead time: 8 weeks (indicative)
Features
- Motor Type: Stepper (2 phase, hybrid)
- Controller: Built In, Daisy-Chain with other V-BMB products
- Resolution: 0.007°
- Accuracy (Unidirectional): 0.1°
- Repeatability: <0.02°
- Speed Resolution: 0.0035°/sec
- Minimum Speed: 0.0035°/sec
- Maximum Speed: 18000°/sec
- Input Voltage: 24-48VDC
- Input Current: Up to 3.5A RMS / 5A peak (programmable in software)
